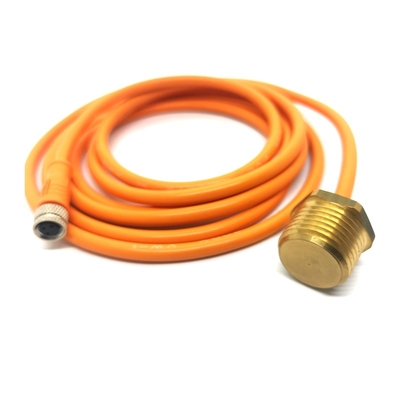

Name: Stainless Steel304 316 OR Brass NTC Temperature Sensor 5k 10k 100k NTC 3950 3435 3977 Two Wire Temperature Sensor
Brand: Stainless Steel304 316 OR Brass NTC Temperature Sensor 5k 10k 100k NTC 3950 3435 3977 Two Wire Temperature Sensor
SKU: WSD-T-013
Rating: 4.9 (158 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Model Number: WSD-T-013

Type: Temperature Sensor

Theory: NTC Thermistor Temperature Sensor

Output: NTC Thermistor Temperature Sensor

Description: 10K Resistor NTC Thermistor Temperature Sensor

Product name: Temperature sensor two wire NTC temperature sensor 3950 3435 3977

Probe Material: Stainless Steel304 316 OR Brass

Probe type: Stinless Steel tube or screw thread

Probe thread: 1/2" 1/4' 1/8" NPT or M3-M23

B value: 3950K 3977K 3470K 3435K

Operate temperature range: -30~+300

Wire Material: Silicone Rubber

Color: Customized Color

Wire: 2 Wire 3 Wire

Cable Length: 3m 2m 1m Customized

Información básica

Model Number: WSD-T-013

Pago y Envío Términos

Descripción de producto

Product Overview

Temperature Sensors - Thermistor - RTDs Probes & Assemblies

A Temperature Sensor is a device that detects and measures the average heat or thermal energy in a medium and converts it into an electrical signal.

A wide variety of temperature sensing devices are available today. WISDA LTD offers a broad range of Thermistors, Resistance Temperature Detectors (RTDs), Digital Temperature Indicators, and probes and assemblies for temperature sensing applications worldwide.

PRODUCT SPECIFICATIONS

RTD Probes and Assemblies-OEM Service					RTD Probes and Assemblies
Item No	WSD-T-11-12	Overall Dimensions OEM (mm)	Probe ø × Probe L	8mmx40mm
Description	Stainless Steel Housing,	Overall Dimensions OEM (mm)		Round Head W	9mm
Description		PVC Insulated Lead Wire, Moisture Resistant
Screw thread	1/2" 1/4" 1/8"-27 NPT M6-M23 Thread	Probe Material	Brass or Stainless steel 304 316
Operating Temperature	-20˚C to +125˚C	Beta(K)	3892 3435 3850
R-T Curve	J	DIN 43760 Class	A
Nominal Resistance (Ohms)	@ 25˚C	Resistance Tolerance (± %)	@ 25˚C
Nominal Resistance (Ohms)		Resistance Tolerance (± %)	10,000		1
Special-OEM service DATA for Rererence
NTC thermistor R	5K 10K 50K 100K	NTC Thermistor B	3435 3470 3970 3977	MF52 MF58
Pt - resistance	PT100 PT1000	Cable spec	AWG18/20/22/24/26/28
Temperature control	NTC -30˚C to +300˚C	PT -50˚C to+500˚C	DS18B20 -50˚C to +125˚C

PRODUCT CONFIGURATION

WISDA TECHNOLOGY LTD

offers Threaded Probe Assemblies suitable for a wide range of temperature sensing applications. If the dimensions and electrical characteristics on this product won't work for your requirements, please contact us for further assistance.
