Inicio /Productos/Condensador de seguridad Y2/Y5V 30 years of safety original factory 4700pf 250VAC Y2 professional ceramic disc capacitor for capacitor

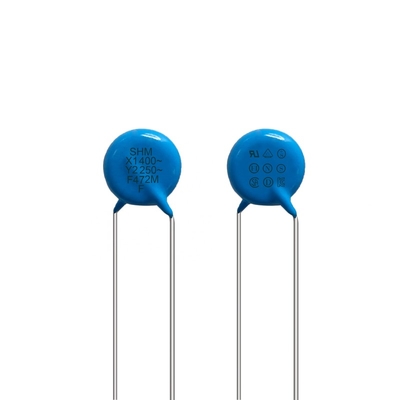

Y5V 30 years of safety original factory 4700pf 250VAC Y2 professional ceramic disc capacitor for capacitor

1 piece
MOQ
Y5V 30 years of safety original factory 4700pf 250VAC Y2 professional ceramic disc capacitor for capacitor
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: DCF472M39Y5VQ6BL7A0
Type: CERAMIC CAPACITOR
Supplier Type: Original manufacturer
Capacitance: 100PF
Tolerance: ± 10%
Package Type: Through Hole, bulk
Rated Voltage: 250V, 250VAC
Operating Temperature: -25 ~125℃
Brand: Ceramic disc capacitor
Voltage - Rated: 250V
Product Code: DCF472M39Y5VQ6BL7A0
Product Type: safety AC capacitor
Capacitance (pf): 4700
Capacitance Tolerance: ± 20%
Temperature Characteristic: Y5V
Lead Spacing (mm): 7.5
Información básica
Model Number: DCF472M39Y5VQ6BL7A0
Pago y Envío Términos
Packaging Details: Gernal carton , Large quantity use pallet
Supply Ability: 7000000 Piece/Pieces per Day
Descripción de producto
Product Description
Product Paramenters
Place of Origin
Guang Dong China
Brand Name
SHM
Product Type
safety AC capacitor
Capacitance (pf)
4700
Capacitance Tolerance
± 20%
Diamter (mm)
10.5
Thickness (mm)
5.0
Temperature Characteristic
Y5V
Rated Voltage
250VAC
Lead Thickness
0.55±0.05
Lead Length (mm)
 26.0±1.0
Package Type
 bulk
Lead Type
Straight Lead
Lead Spacing (mm)
7.5
Marking
General Marking
Body Material
Epoxy Resin
Lead Material
CP
Flame Retardant Epoxy Resin
UL94V-0
Operating tempreture
 -25 ~85℃ , ( -25 ~125℃)
Insulation Resistance
Rj≧10000MΏ(500VDC)
Dissipation Factor
tgð≦2.5%
Approved Certifications
UL, VDE, CSA, SEMKO, SEV, KC, FIMKO, NEMKO,DEMKO ,CQC
Company Profile
Exhibition
Certifications
Transport
FAQ
Q1: Are you manufacturer? A1:Certainly, we are an orginal factory from ceramic powder to finished product with 32 years manufacturer experience. Q2: Can I take sample order? A2: Samples are free of charge to provide. We believe that try and test samples then making a big decision is a necessary step before we build up long term cooperation. Q3: Can you offer the OEM for us? A3: We don't support OEM orders, our brand SHM is one of the most famoue brand around the world. Q4: How do you guarantee for the products quality?
A4:We control the quality from very beginning. All employees are being professional training.Every working station has detailed employment instructions.These is also independent QC team who has fully time control the production quality. Q5: How long is your delivery time? A5:If the model we have in stock, we could send out in 3 working days after receiving full payment.If no stock, delivery day will be 35 to 40 working days after confirming all the details.
