Model Number:
MKP X2, MKP X2
Type:

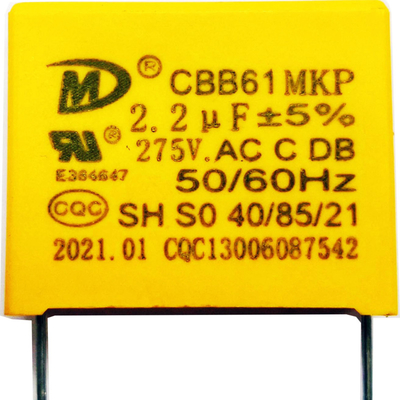

Polyester Film Capacitor, Polypropylene film capacitor
D/C:
2121-X2
Supplier Type:
Original manufacturer, ODM
Capacitance:
0.01uf~20uf
Media Available:
datasheet
Tolerance:
+_5%(J),+_10%(K)
Package Type:
stainless steel
Rated Voltage:
100VAC~500VAC(50-60Hz)
Operating Temperature:
25/70/21,25/85/21
Brand:
MKP X2
Specification:
Not Applicable
Voltage - Rated:
100VAC~500VAC(50-60Hz)
ESR (Equivalent Series Resistance):
4000(mΩ)
Applications:
motor, fan, air conditioner etc.
Impedance:
4000(mΩ)
Circuit Type:
Not Applicable
Temperature Coefficient:
25/70/21,25/85/21
Current - Leakage:
10,000AFC
Voltage - Breakdown:
Not Applicable
Capacitance Range:
0.01uf~20uf
Application:
motor, fan, air conditioner etc.
Safety approvals:
CQC/VDE/TUV/CE
Approval standard:
GB/T3667,EN60252-1
Climatic category:
25/70/21,25/85/21
Rated voltage:
250VAC~500VAC(50-60Hz)
Capacitance range:
0.01uf~20uf
Capacitance tolerance:
+_5%(J),+_10%(K)
Between terminals:
2*Un(VAC)/3s(CQC,VDE,TUV),1.5*Un(VAC)/3s(U/L)
Between terminals and case:
2*Un+1000(VAC)/3s(>=2000VAC)
