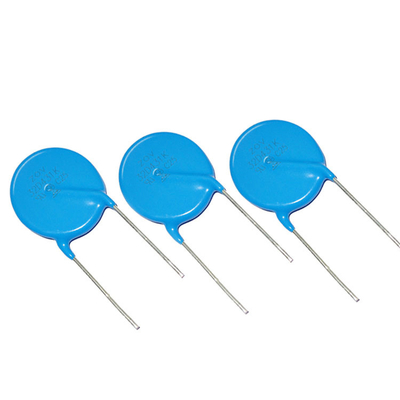

No High Power Zov Varistor Factory Price Radioactive Material 5D390K 5D-390K 5D390 39V Metal Oxide MOV Varistor For Surge Arrester

1000 Pieces
MOQ
$0.03(1000 - 99999 Pieces) $0.02(>=100000 Pieces)
Precio
No High Power Zov Varistor Factory Price Radioactive Material 5D390K 5D-390K 5D390 39V Metal Oxide MOV Varistor For Surge Arrester
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: 05D390K
Type: Metal Oxide Varistor (MOV)
Brand: EC
Package / Case: DIP
Part Number: 05D390K
package: DIP
Material: No Radioactive Material
Body: Nickel Plated
Leads: Tin Plated
Información básica
Model Number: 05D390K
Pago y Envío Términos
Packaging Details: 3000pcs/reel
Supply Ability: 10000000000 Piece/Pieces per Week
Descripción de producto

High Power Zov Varistor factory price Zinc oxide varistor 05d390k cheap MOV Metal Oxide Varistors For Surge Arrester

Description :

The 05D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by
offering higher surge ratings than ever before available in such small discs.
The maximum peak surge current rating can reach up to 0.8KA (8/20 μs pulse) to protect against high peak surges, including
indirect lightning strike interference, system switching transients and abnormal fast transients from the power source.
Features:
Wide operating voltage (V1mA) range from 18V to 750V
Fast responding to transient over-voltage
Large absorbing transient energy capability
Low clamping ratio and no following-on current
Meets MSL level 1, per J-STD-020

Application :

Transistor, diode, IC, thyristor or triac semiconductor protection
Surge protection in consumer electronics
Surge protection in industrial electronics
Surge protection in electronic home appliances, gas and petroleum appliances
Relay and electromagnetic valve surge absorption

Material

No Radioactive Material

Operating Temperature

-40℃ ~ +85℃

Storage Temperature

-55℃ ~ +125℃

Body

Nickel Plated

Leads

Tin Plated

Devices with No lead

Nickel Plated

Product Name VAC
(V)		 VDC
(V)		 V1mA
(V)		 Ip
(A)		 Vc
(V)		 I(A)
Standard
1 Time		 I(A)
Standard
2 Time		 I(A)
Standard High Surge
1 Time		 I(A)
Standard High Surge
2 Time		 Cp@1KHZ
(pf)		 Package
All11115130141401501717519020210230252502753030032035350350.03854042046050607595 All10012514150170181802002222525026275300313203503838541545460505565606156585 All100(90~110)120(108~132)150(135~165)18(15~21.6)180(162~198)200(180~220)22(19.5~26)220(198~242)240(216~264)27(24~30)270(243~297)300(270~330)33(29.5~36.5)330(297~363)360(324~396)39(35~43)390(351~429)430(387~473)47(42~54)470(423~517)510(459~561)56(50~62)560(504~616)620(558~682)68(61~75)680(612~748)750(675~825)82(74~90) All15 All1025104112012312401451501772102603203553804041547548520570606206757374580810845920 All100400 All20050 All250800 All12560095 All1001101150125140140016521025030300353704045050530556064065707585930 All05D
05D220K/ 05D220KJ 14 18 22(19.5~26) 1 48 100 50 250 125 1150 05D
05D301K /05D301KJ 190 250 300(270~330) 5 520 400 200 800 600 85 05D
05D331K/ 05D331KJ 210 275 330(297~363) 5 570 400 200 800 600 75 05D
05D361K/ 05D361KJ 230 300 360(324~396) 5 620 400 200 800 600 70 05D
05D391K/ 05D391KJ 250 320 390(351~429) 5 675 400 200 800 600 65 05D
05D431K /05D431KJ 275 350 430(387~473) 5 745 400 200 800 600 60 05D
05D471K/ 05D471KJ 300 385 470(423~517) 5 810 400 200 800 600 55 05D
05D511K /05D511KJ 320 415 510(459~561) 5 845 400 200 800 600 50 05D
05D561K /05D561KJ 350 460 560(504~616) 5 920 400 200 800 600 50 05D
05D561K/ 05D561KJ 350.0 460 560(504~616) 5 920 400 200 800 600 50 05D
05D621K/ 05D621KJ 385 505 620(558~682) 5 1025 400 200 800 600 40 05D
05D681K/ 05D681KJ 420 560 680(612~748) 5 1120 400 200 800 600 35 05D
05D751K /05D751KJ 460 615 750(675~825) 5 1240 400 200 800 600 30 05D
05D271K /05D271KJ 175 225 270(243~297) 5 475 400 200 800 95 1400 05D
05D241K/ 05D241KJ 150 200 240(216~264) 5 415 400 200 800 600 100 05D
05D270K /05D270KJ 17 22 27(24~30) 1 60 100 50 250 125 930 05D
05D330K/ 05D330KJ 20 26 33(29.5~36.5) 1 73 100 50 250 125 930 05D
05D390K/ 05D390KJ 25 31 39(35~43) 1 80 100 50 250 125 640 05D
05D470K /05D470KJ 30 38 47(42~54) 1 104 100 50 250 125 530 05D
05D560K /05D560KJ 35 45 56(50~62) 1 123 100 50 250 125 450 05D
05D680K/ 05D680KJ 40 56 68(61~75) 1 150 100 50 250 125 370 05D
05D820K /05D820KJ 50 65 82(74~90) 5 145 400 200 800 600 300 05D
05D101K/ 05D101KJ 60 85 100(90~110) 5 177 400 200 800 600 250 05D
05D121K /05D121KJ 75 100 120(108~132) 5 210 400 200 800 600 210 05D
05D151K /05D151KJ 95 125 150(135~165) 5 260 400 200 800 600 165 05D
05D181K /05D181KJ 115 150 180(162~198) 5 320 400 200 800 600 140 05D
05D201K/05D201KJ 130 170 200(180~220) 5 355 400 200 800 600 125 05D
05D221K/ 05D221KJ 140 180 220(198~242) 5 380 400 200 800 600 110 05D
05D180K/05D180KJ 11 14 18(15~21.6) 1 40 100 50 250 125 1400 05D
