Name: 10V 100000uF screw terminal general purpose aluminum electrolytic capacitor, 10V 100000MFD power capacitor
Brand: 10V 100000uF screw terminal general purpose aluminum electrolytic capacitor, 10V 100000MFD power capacitor
SKU: CD135
Rating: 4.6 (178 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Model Number: CD135

Type: Aluminum Electrolytic Capacitor

Supplier Type: Original manufacturer

Capacitance: 100000uF, 270~820000uF

Tolerance: +-20%

Package Type: Through Hole

Rated Voltage: 10~450VDC

Operating Temperature: -40Â°C~+85Â°C

Application: General Purpose, General Purpose

Product name: 10V 100000uF Screw Terminal Aluminum Electrolytic Capacitor

Package: Cartons

Skype: huang.sophie9

Email: sales(at)hua-sing.com

Información básica

Model Number: CD135

Pago y Envío Términos

Packaging Details: Carton Packaging

Supply Ability: 1000000 Piece/Pieces per Month

Descripción de producto

10V 100000uF Screw Terminal Aluminum Electrolytic Capacitor,10V 100000MFD Power Capacitor

Product Name:Screw Terminal Aluminum Electrolytic Capacitor

Series:CD135

Operating Temperature Range°C:-40~+85°C

Working Voltage Range:10~450V DC

Capacitance Range:270~820000uF

Load life:2000Hours

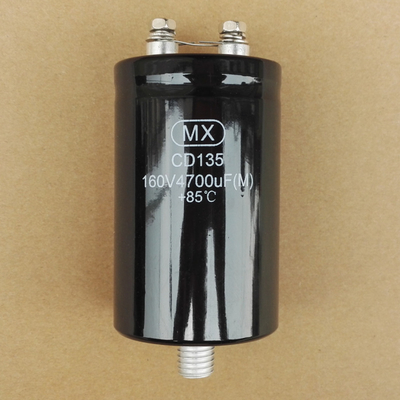

CD135 Screw Terminal Aluminum Electrolytic Capacitor

Capacitance	270~820000µF
Voltage Rating	10~450V DC
Tolerance	±20%
Lifetime @ Temp.	2000 Hours @ 85°C
Operating Temperature	-40°C ~ 85°C
Ripple Current
Size / Dimension
Case	Screw Terminal
Features	Load life of 2000 hours at 85°C
Applications	Inverter & Power Supplies
Packaging	6~12pcs Per Carton

Features:

(1)all-welded construction ensures reliable electrical contact;

(2)high reliability and high ripple current capability;

(3)RoHS compliant.

Construction:

(1)Charge-discharge proof, polar;

(2)aluminum case with insulating sleeve;

(3)poles with screw terminal connection;

(4)mounting with ring clips , clamps or thread stud.

Specification:

Specification		Size (mm)	Part Number
10V (13V) 1A	33000uF	36X53	ECG1ABP333MA053**
	39000uF	36X53	ECG1ABP393MA053**
	47000uF	36X65	ECG1ABP473MA065**
	56000uF	36X83	ECG1ABP563MA083**
	68000uF	36X83	ECG1ABP683MA083**
	82000uF	36X100	ECG1ABP823MA100**
	100000uF	36X100	ECG1ABP104MA100**
	120000uF	36X121	ECG1ABP124MA121**
	150000uF	36X121	ECG1ABP154MA121**
	180000uF	51X96	ECG1ABP184MC096**
	220000uF	51X121	ECG1ABP224MC121**
	270000uF	51X121	ECG1ABP274MC121**
	330000uF	64X96	ECG1ABP334MD096**
	390000uF	64X115	ECG1ABP394MD115**
	470000uF	64X130	ECG1ABP474MD130**
	560000uF	77X115	ECG1ABP564MEl15**
	680000uF	77X130	ECG1ABP684ME130**
	820000uF	77X155	ECG1ABP824ME155**

Dimensions

Factory

Packing
